Introducing JINWOO SMC,
a company that puts safety first
Introducing the products of Jinwoo SMC
made with the best technology.
Introducing JINWOO SMC's technology,
which has been recognized for the
reliability and excellence of equipment.

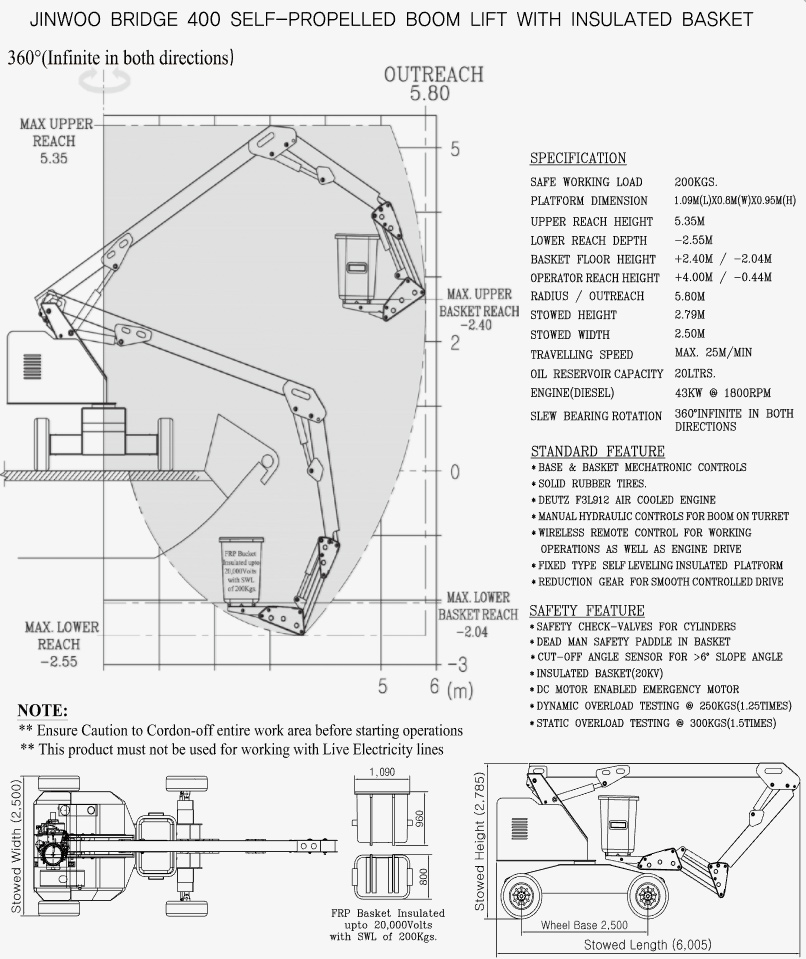

| DESCRIPTION | Unit | BR400 | |
|---|---|---|---|
| Working Load | Load | kg | 200 (Operator included) |
| Vehicle | Overall Length | mm | 6,001 |
| Overall Height | mm | 2,782 | |
| Overall Width | mm | 2,500 | |
| Working Area | Height | m | +2.73 / -2.04 |
| Work radius | m | 5.8 | |
| Platform (FRP) | Size | mm | 1090*800*960 |
| Boom | Type | - | Rectangular |
| Singular Booms | - | 1 step + Articulating Boom + Link | |
| Operating Type | - | Hydraulic Cylinder | |
| Turn Table Rotation | Type | - | Hydraulic Reducer |
| Rotation Angle | degree | 360 (Limitless) | |
| Hydraulic Pump Driving Type | Engine | kw/rpm | 40/2,500 |

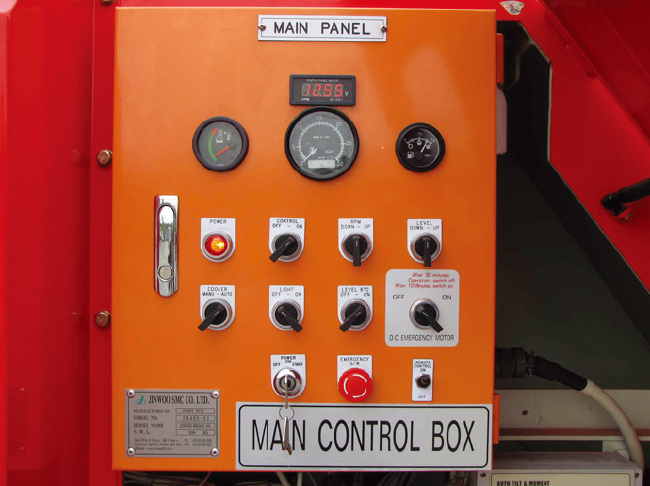

| Valve Control | Type | - | Lever type (on emergency) |

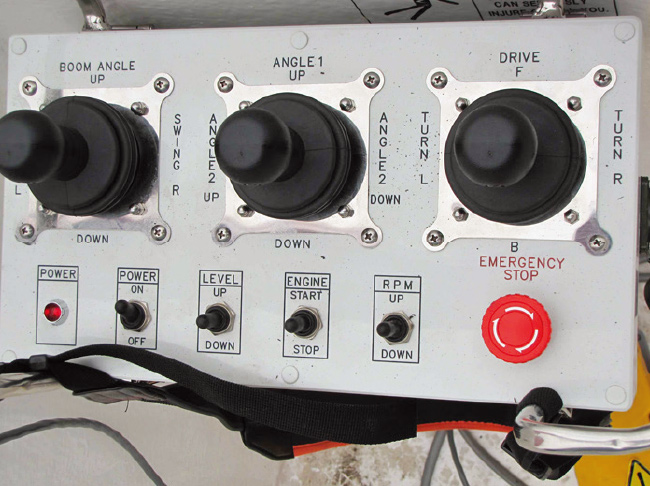

| Remote Control | - | Wired | |
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
