| Contents | Unit | Data | Remarks | |
|---|---|---|---|---|

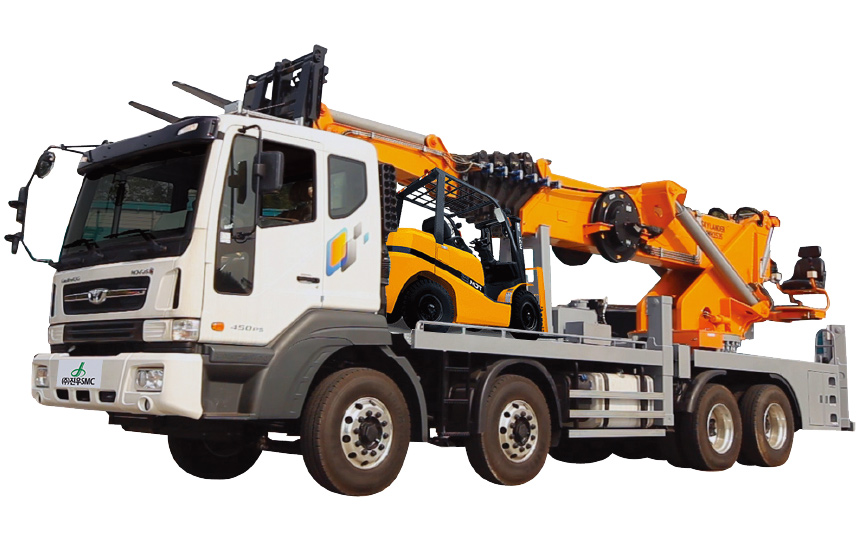

| Mounting Truck | Ton | 36 GVW | 8X4 Axle | |

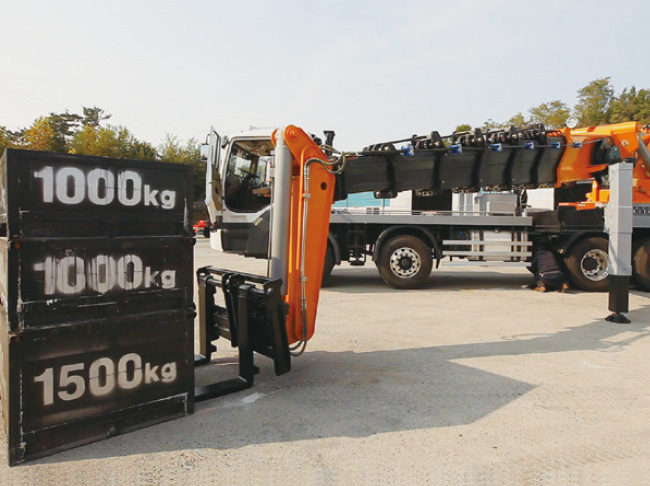

| Working capability | Load | kg | 3,000 | Including 2 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 12,550 | |
| Height | mm | 3,970 | ||
| Width | mm | 2,500 | ||

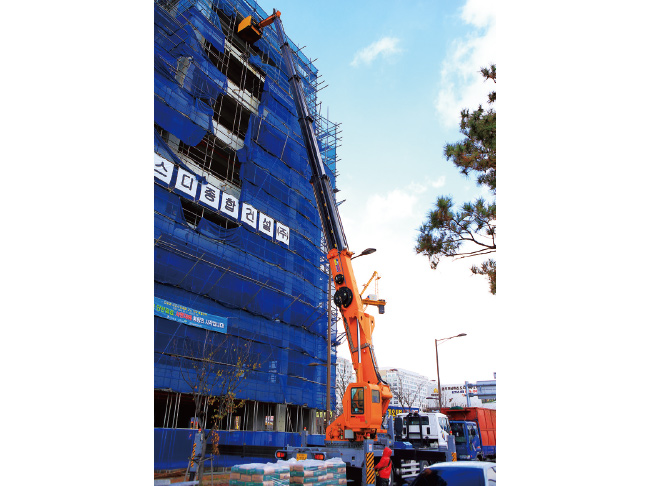

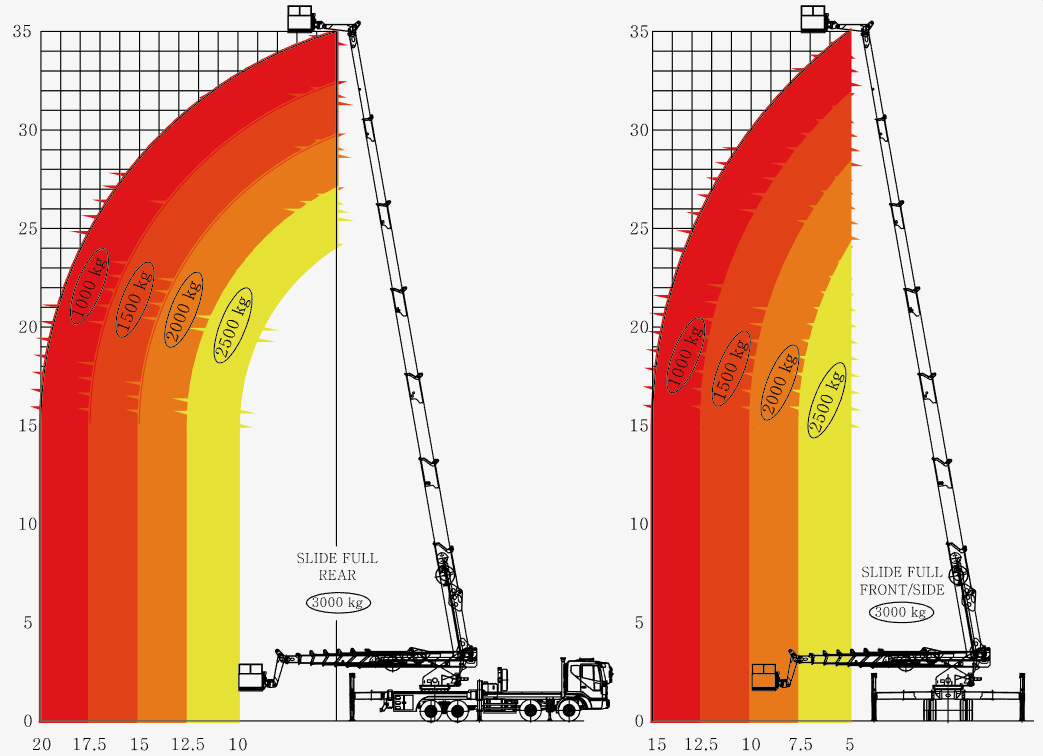

| Working Area | Height | m | 37 | |
| Radius | m/kg | 10/3,000 ~ 20/1,000 | ||

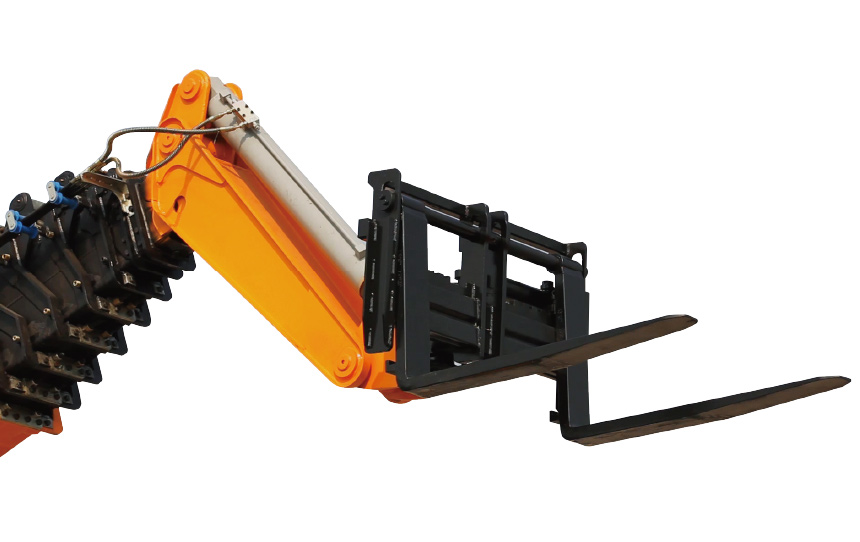

| Platform | Size(fixed) | mm | 2,120*1,100*1,120 | |
| Tilt angle | ±60 | max. | ||
| Boom | Shape | deg. | Square/round corner | |
| No. of booms | 6 | All Telescopic | ||
| Extrusion type | no. | By 2 cylinder, chain linked | ||
| Turntable Rotation | Type | Hydraulic | ||
| Angle | 360 | Continuous | ||
| Hydraulic Pump Drive Type | Engine | deg | P.T.O | |
| Outrigger | Width | 6,740 Front, 7,840 Rear | ||
| Extension type | mm | By hydraulic Cylinder, wire | ||
| Shape | H-X Type | Special | ||
| Valve control | Type | By lever (in emergency) | ||
| Remocon | wired, wireless | Special | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
