| Contents | Unit | Data | Remarks | |
|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 7.0 GVW | 4x2 | |
| Max. Working Load | Payload | Kg | 250 ( OPTIONAL 200Kgs Crane Winch ) |
Including 2 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 5,810 | Transport dimension |
| Height | mm | 3,580 | ||
| Width | mm | 2,090 | ||

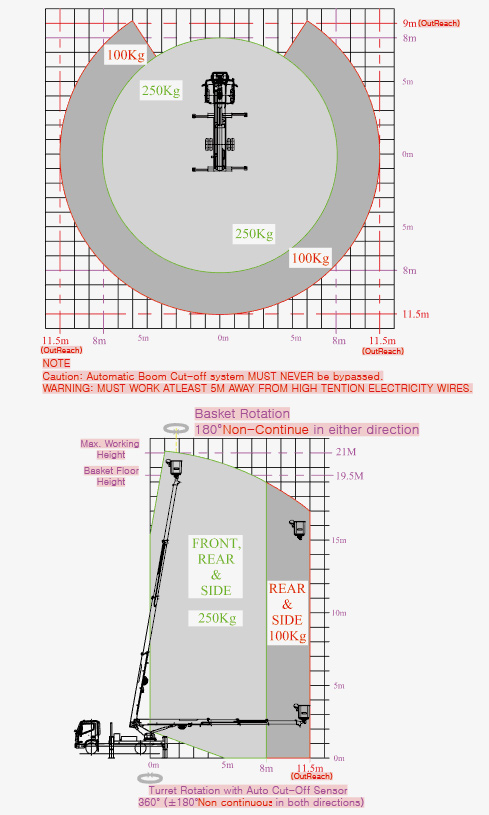

| Working Area | Max. Height | m | 20.5 | Operator height |
| Max. Outreach | m/kg | 8.5 - 250 / 11.5 - 100 | Outrigger Max. extended | |
| Work Platform | Dimension L x W x H | mm | 1,280 * 850 *1,000 | 20KV Insulated |
| 1,850 * 950 * 1,100 | Steel | |||
| Rotation Angle | deg. | ±100 / 360deg. Continuous |
Std. / Optional | |
| Boom | Type | Rectangular | 4 edges | |
| Number of Booms | 4 | Telescopic | ||
| Extension | Hydraulic Cylinder, Chains | Single stage | ||
| Turntable Rotation | Type | Slew Drive with Hydraulic Reduction Gear | Minimal backlash | |
| Rotation Angle | deg. | 350 ( ±175 ) | Auto Cut-off | |
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | |
| Outrigger | Width | mm | Front : 5,710 ; Rear : 5,910 | Different positioning |
| Extension | Hydraulic Cylinders, Wires | |||
| Type | H - H | Hydraulic | ||
| Operations and Controls | Type | Hydraulic Levers | All controls | |
| Remote control | Portable Radio Wireless | Upper controls only | ||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
