JINWOO 800d

  • Mounting Truck : Tata-daewoo MacXen 19.5ton (480HP)
  • Attached Auto Transmission (ZF power line, 12 steps)
  • Electric Power Assisted Hydraulic Steering (Soft Handle Control)

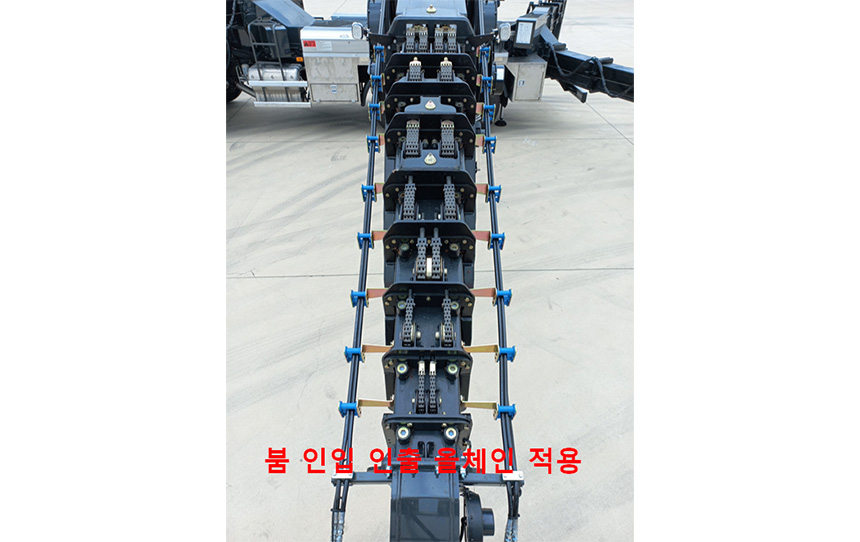

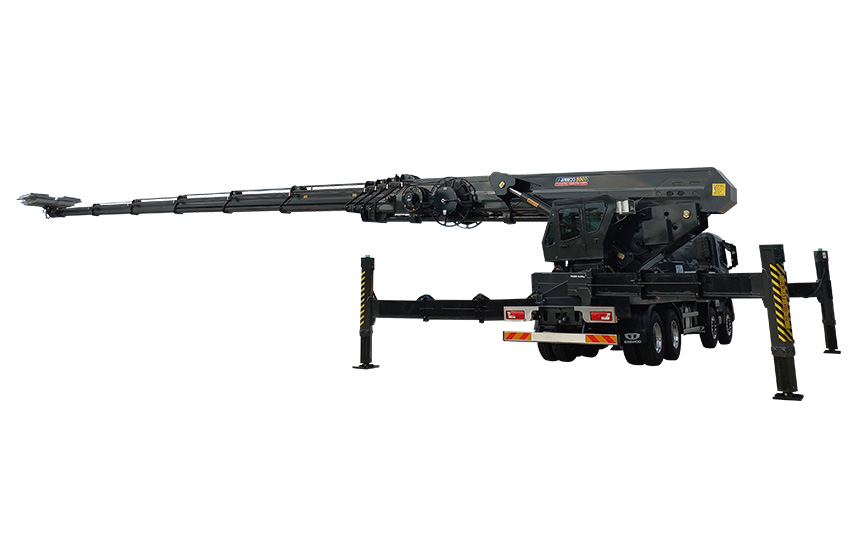

  • Applied All Boom Chain for extension & retraction.
  • Applied the separated 2 steps cylinder. 3 types of Boom extension.
  • Turntable : 360 degrees continuous rotation.

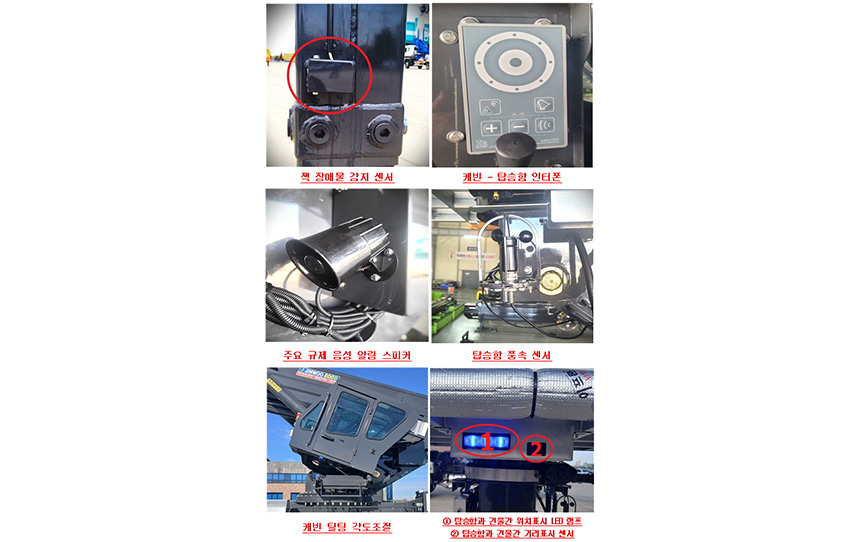

  • Attached the ultrasonic alarm sensor for O/R jack’s obstacles.
  • Attached 7 inch monitor for superstructure & sub-frame.
  • Show the levelling of turntable (sub-frame) in the monitor.
  • Attached the length showing lamp in the platform.
  • Attached the sensor showing length between platform & building.
  • Attached wind speed meter in the platform.
  • Possible to control tilt angle of cabin (from 0 to 25 degrees).
  • Attached Interphone connecting cabin & platform (hands free possible).
  • Attached the hydraulic heating system(ON/OFF is possible in the driver’s seat of truck cabin).
  • Possible to convert automatically superstructure & sub-frame by remote control.
  • Attached the sound alarm speaker for main regulations.

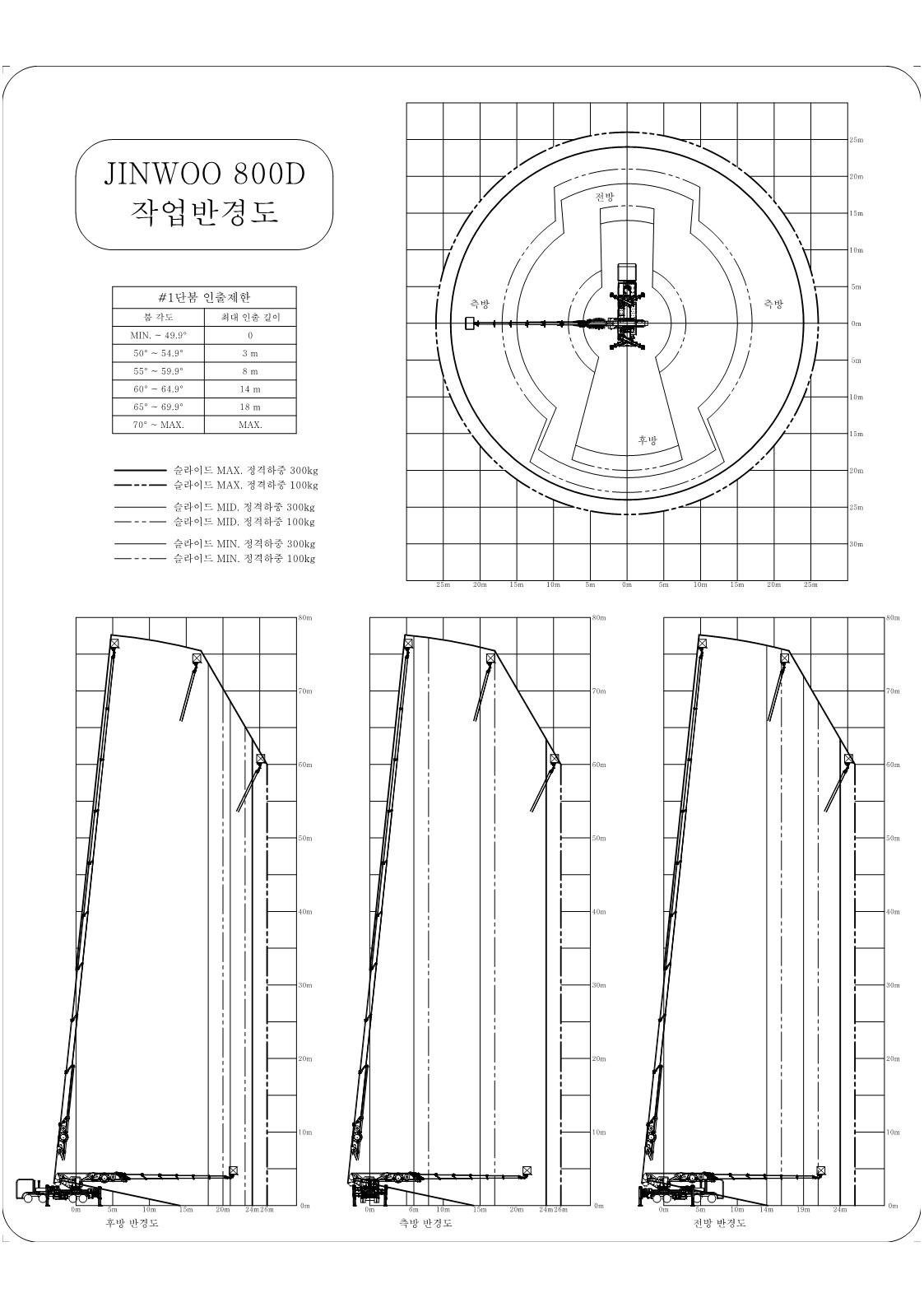

Work Area Diagram

Specfication

Contents Unit Data Remarks
Permissible Mounting Vehicle - 8x4, 36.5Tons, 480PS, 11120CC Tata-Daewoo
Max. Working Load Payload kg 300 Including 2 persons

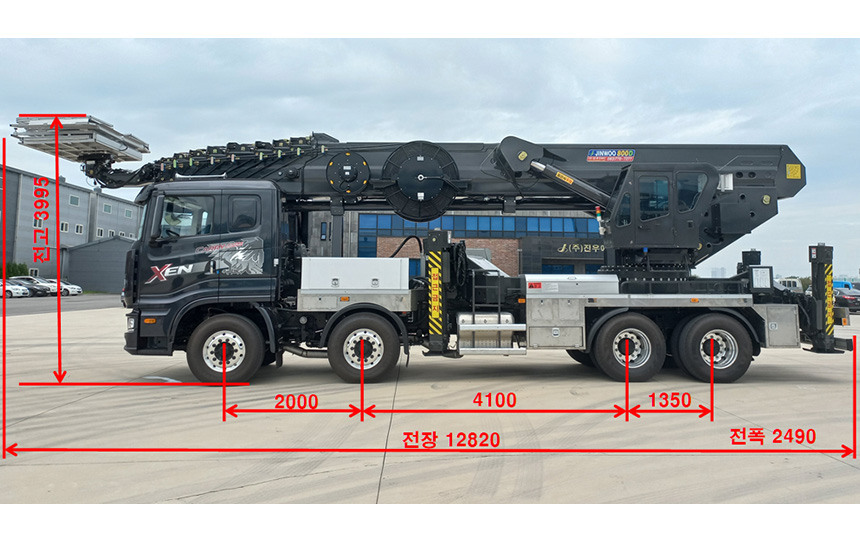

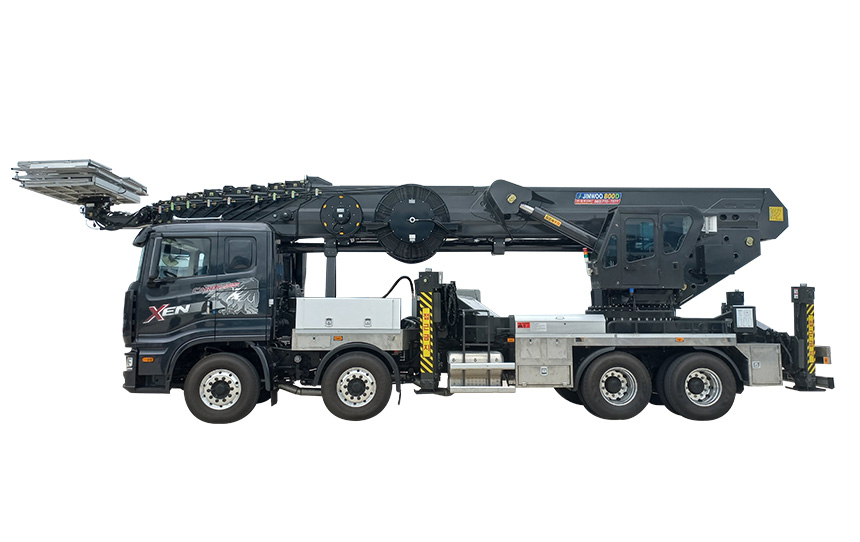

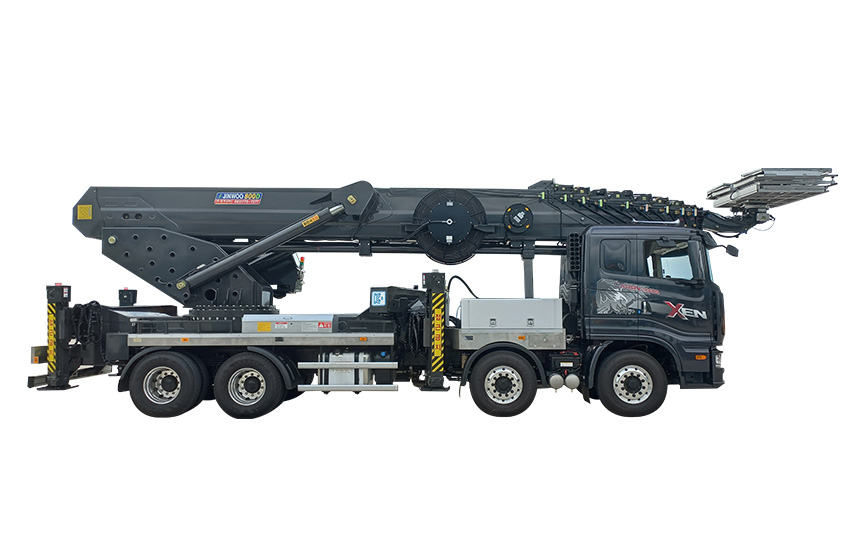

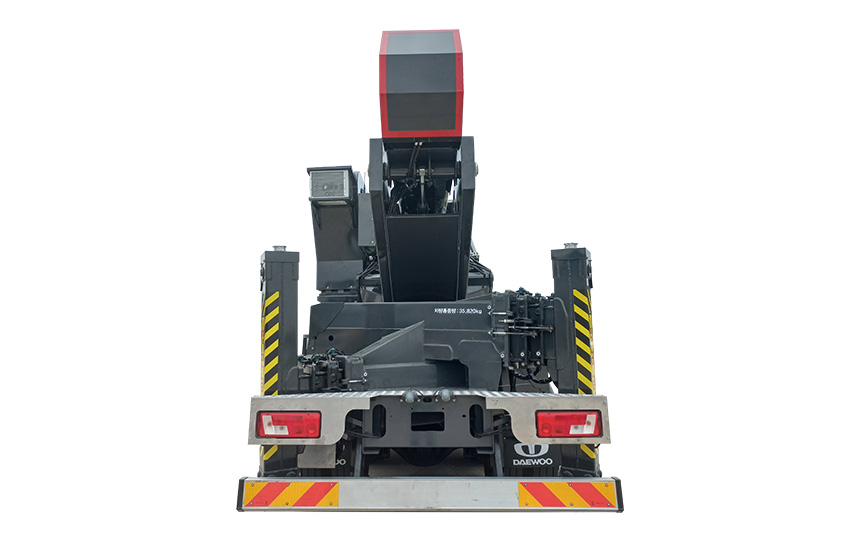

Product’s Dimension
(with Vehicle)		 Length mm 12,820 Transport dimension
Height mm 3,995
Width mm 2,490

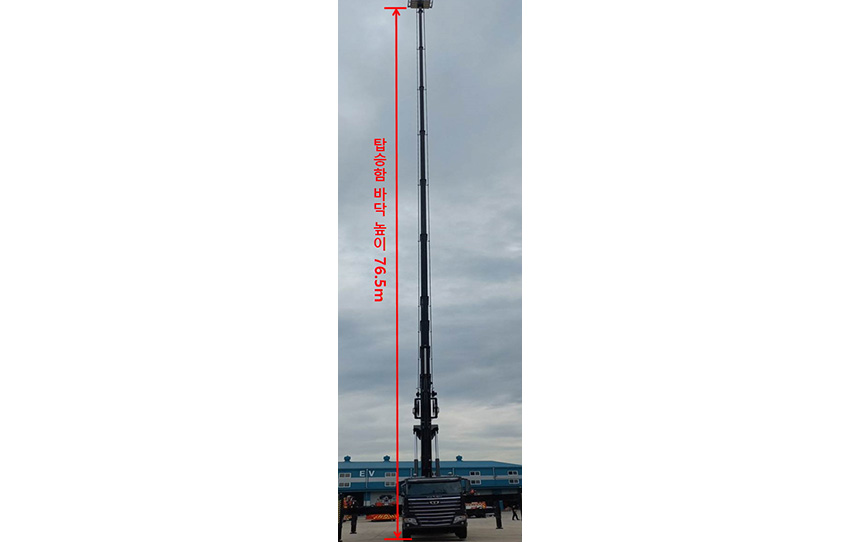

Working Area Max. Height m 76.5 Including Operator height

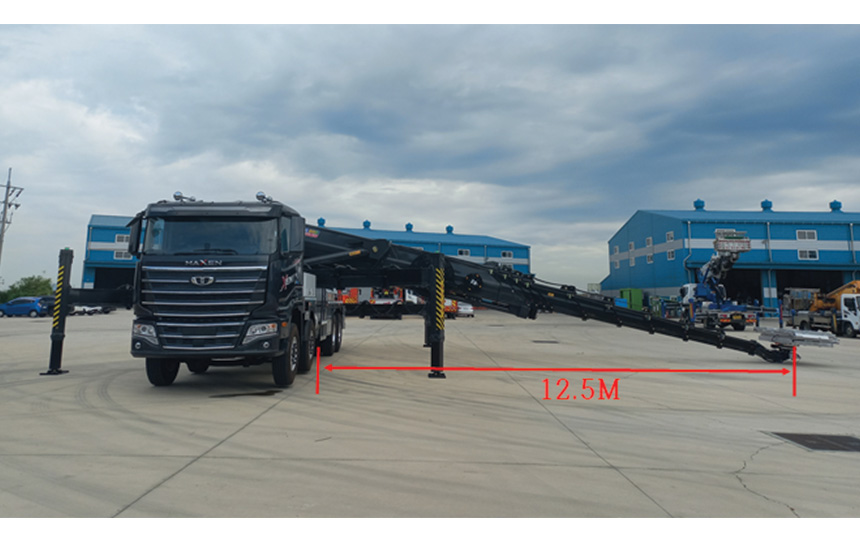

Max. Outreach m/kg 24 - 300 / 26 - 100 Outrigger Max. extended

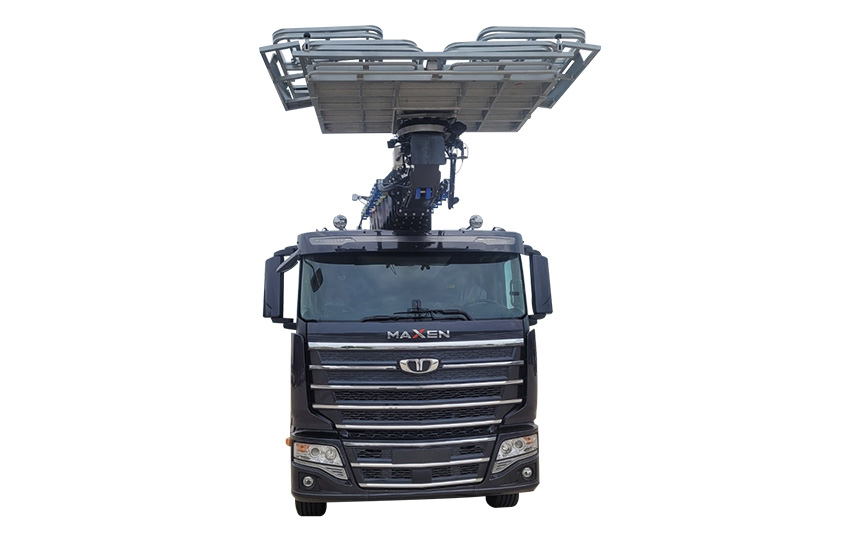

Work Platform Dimension L x M x H mm 3,140 * 1,010 * 1,100 Extended
Rotation Angle deg. 360 continuous ±720
Boom Type 16 edges Hexa-decagon
Number of Booms 10 Telescopic
Extension Hydraulic Cylinders, Chains Dual stage
Turntable Rotation Type Slewing Bearing with Hydraulic Reduction Gears Minimal backlash
Rotation Angle deg. 360 continuous ±720
Hydraulic Pump Drive Type Engine P.T.O Electric type

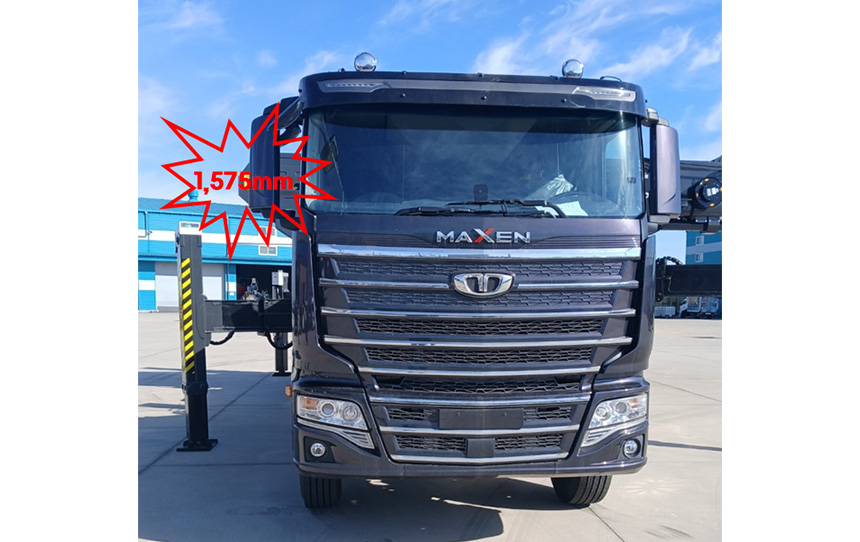

Outrigger Width mm Front : 9,270 ; Rear : 8,080 Different positioning
Extension Hydraulic Cylinders, Wire
Type X - A Patented
Operations and Controls Type Hydraulic Levers All controls
Remote control Portable Radio Wireless Upper controls only

The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
