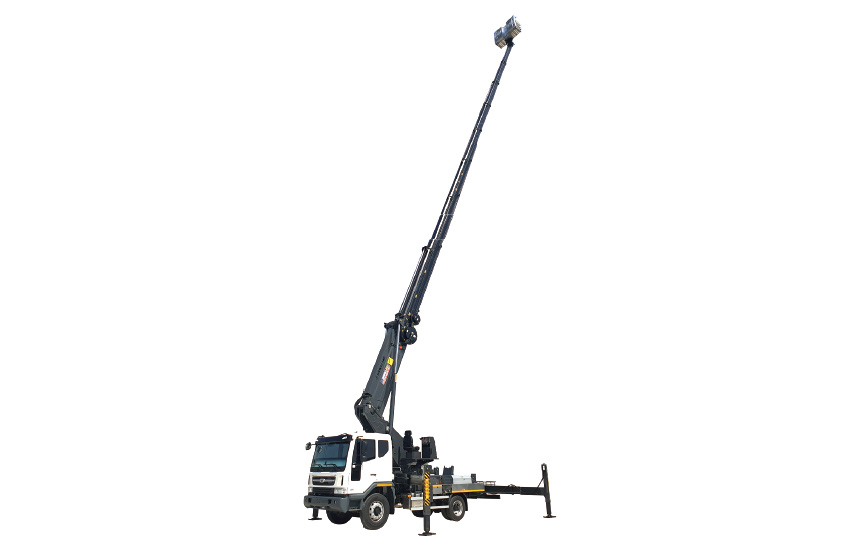

| Contents | Unit | JINWOO460L | JINWOO450S | Remarks | |
|---|---|---|---|---|---|
| Permissible Mounting Vehicle | Ton | Min. 16.5 GVW | 4x2 | ||
| Max. Working Load | Payload | Kg | 500 (special design) | 400 | Including 3 persons |
| Product’s Dimension (with Vehicle) |
Length | mm | 9,565 | 7,890 (Compact) | Transport dimension |
| Height | mm | 3,900 | 3,920 | ||
| Width | mm | 2,495 | 2,495 | ||

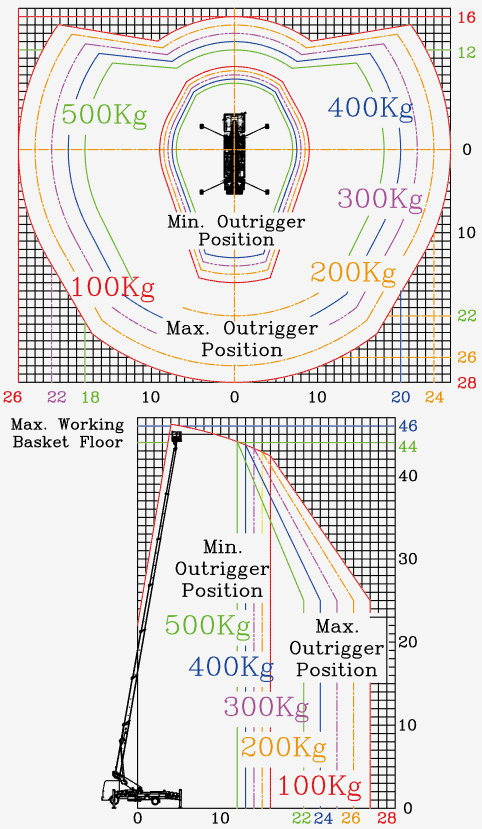

| Working Area | Max. Height | m | 46 | 45.5 | Including Operator height |
| Max. Outreach | m/kg | 22 - 500, 28 - 100 | 22 - 400, 26 - 100 | Outrigger Max. extended | |
| Work Platform | Dimension (L x D x H) | mm | 1,830 * 500 *1,100 | Basic | |
| 3,220 * 1,030 * 1,100 | Extended | ||||
| Rotation Angle | deg. | 360deg. Continuous | ±720 | ||
| Boom | Type | #1 to #3 Hexadecagon #4 to #7 Octagonal |
Octagonal | Special 16 & 8 edges | |
| Number of Booms | 7 | 9 | Telescopic | ||
| Extension | By hydraulic Cylinder, Chain | ||||
| Turntable Rotation | Type | Slewing Bearing with Hydraulic Reduction Gears | Minimal Backlash | ||
| Rotation Angle | deg. | 350 (±175) | Auto Cut-off | ||
| Hydraulic Pump Drive Type | Engine | P.T.O | Electric type | ||

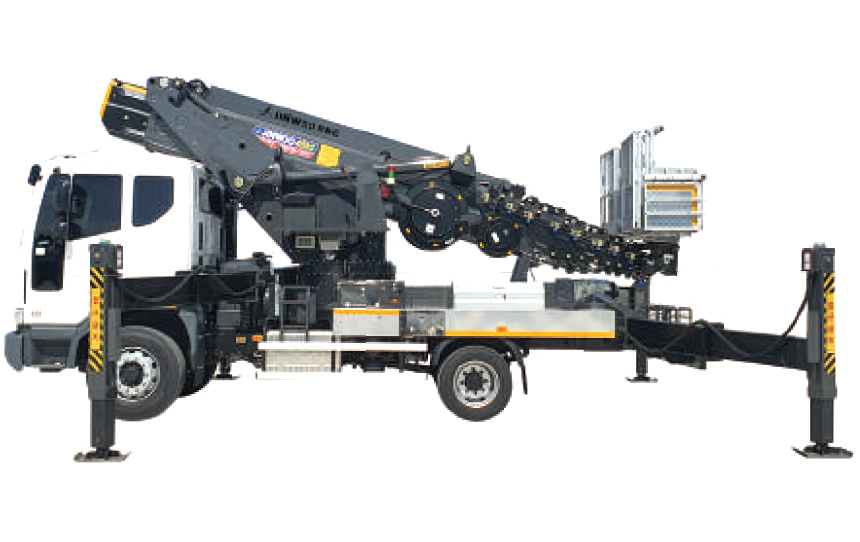

| Outrigger | Width | mm | Front : 8,460 Rear : 8,165 |
Front : 6,900 Rear : 6,805 |
Program based Multiple positioning |
| Extension | By hydraulic Cylinder, Wire | ||||
| Type | X - A | Patented | |||
| Operations and Controls | Type | Hydraulic Levers | All controls | ||
| Remote control | Portable Radio Wireless | Upper controls only | |||
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
