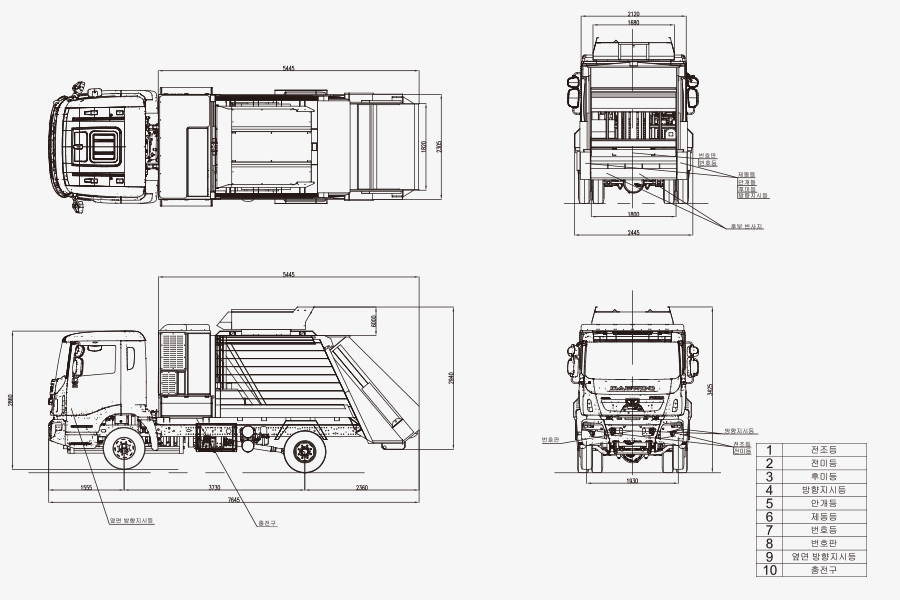

| System | item | specifications |
|---|---|---|
| Dimension | Length | 7,100mm |
| Width | 2,420mm | |
| Height | 2,850mm | |
| Wheelbase | 3,800mm | |
| Curb weight | 15,000kg | |
| Gross weight | 18,000kg | |
| Performance | Maximum speed | 90kph |
| Gradability | 30% | |
| Driving distance per day after charging | 200km | |
| Turning radius | 6.7m | |
| Chassis | Electric-powered steering | 50bar, 1300rpm |
| Electric air conditioner compressor | 8.65bar, 1300rpm | |
| Electric air compressor | Screw type, 8.8bar | |
| Electric cooling system | Water cooling, cooling fan | |
| Electric PTO | 120bar, 1300rpm | |
| Electric power | Motor type | PMSM motor |
| Maximum output | 140kW * 2 | |
| Maximum torque | 675(N‧m) * 2 | |
| Battery type | Lithium ternary system | |
| Battery capacity | 200kWh | |
| Charging output | 150kW | |
| Charging voltage | 642.4V | |
| Charging time | Rapid: 1.5hour | |
| Auxiliary battery capacity | 24V | |
| DC/DC converter output | 250A, 7kW | |
| Control system | Vehicle controller | NXP MPC Series |
| Meter cluster | Touch panel method | |
| Malfunction diagnosis | OBD II | |
| Real-time monitoring | Data logger | |
| In-vehicle communication | CAN 2.0B | |
| Regenerative brake | Control proportional to motor speed | |
| Hill Start Assist (HSA) | Motor zero velocity control | |
| Special module (cleaningvehicle) | Loading volume | 7㎥ |
| Type | Compacting |
The above specifications are bound to change without prior notification for better operators safety and due to changes in truck specifications.
